CCH hydraulic cone crusher

What is the Hydraulic Cone Crusher? Hydraulic Cone Crusher is what properties of the crushing equipment?

CCH series Hydraulic Cone Crusher is the introduction of the latest German technology and development with the world's advanced level of high energy cone crusher, it not only improves the production capacity and crushing efficiency, but also expanded the scope of application, from limestone to basalt, from stone production to a variety of ore crushing, it can be in a variety of pieces, fine, super fine work with incomparable crushing performance. Is the mine construction industry to replace spring cone crusher and the renewal of the general Hydraulic Cone Crusher is the latest generation of products, is a large stone factory and mining crusher is the most ideal equipment.

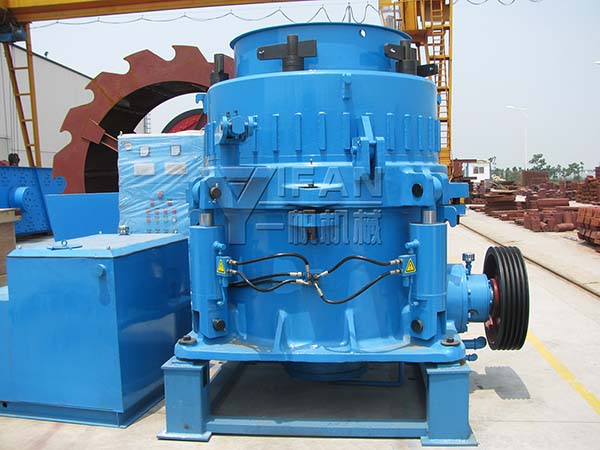

CCH cone crusher
hydraulic cone crusher YF_O1

Classification of Hydraulic Cone Crusher



Hydraulic cone crusher is provided according to the hydraulic system of the differences can be divided into multi cylinder Hydraulic Cone Crusher ( CHP Series ) and single cylinder Hydraulic Cone Crusher ( CHS series ).

CHP multi cylinder Hydraulic Cone Crusher


HP series multi cylinder Hydraulic Cone Crusher is the introduction of the latest German technology and the development with the world's advanced level of high energy cone crusher. The machine adopts principle of intergranular laminated crushing chamber is specially designed and matching speed, to replace the traditional single particle crushing principle, to achieve selective crushing, homogeneous crushing granularity. Bidirectional hydraulic cylinder over the release of iron to iron smooth through the crushing chamber, and had iron and instantaneous stuffy car condition, hydraulic jack, automatic discharge, avoiding the spring cone crusher need downtime for maintenance operation. Crushing chamber adopts high performance non-contact type labyrinth seal, improves the reliability of blocking dust, reduces the pollution of iron and the abrasion of equipment cycle, plus the fuselage to carry unique dilute oil lubrication system, greatly improving the service life of the equipment.

CHS single cylinder Hydraulic Cone Crusher


CHS series single cylinder Hydraulic Cone Crusher is the latest release of a Hydraulic Cone Crusher, this type of crusher is in the CHP series Hydraulic Cone Crusher based on the fusion of the United States of America Technology on the material layer crushing principle and static theory of another important breakthrough. CHS Hydraulic Cone Crusher crushing cavity according to the particle size is divided into four cavities, respectively, in pieces, fine, fine, in extra fine, suitable for crushing hardness f=5-16such as iron ore, nonferrous metal ore, granite, limestone, sandstone, quartzite, pebbles and other kinds of ores and rocks, widely used in metal mines, metallurgical industry, chemical industry, building industry, cement industry and gravel industry.

The working principle of Hydraulic Cone Crusher:


Hydraulic cone crusher ( cone crusher ) work, the rotation of the motor through the pulley or coupling, drive shaft and the cone of force in the eccentric sleeve moving around a fixed for rotary movement, so that the cone crusher in the crushing wall and near and sometimes leave is fixedly arranged on the regulating sleeve rolling white surface, the ore constantly under attack in the crushing cavity, extrusion and bending and crushing ore achieved. At unbreakable foreign body through the crushing chamber or for some reason machine is overloaded, the spring system of insurance, the mouth of discharge increases, foreign bodies from the crushing chamber is discharged, such as blocking in row ore using cavity cleaning system, so that the discharging continues to increase, so that the foreign body removal of crushing cavity. Under the action of the spring, the gape is automatically reset, the machine returns to normal work.

Hydraulic cone crusher features and advantages

CCH series hydraulic high efficiency Hydraulic Cone Crusher is beyond the spring cone crusher and general Hydraulic Cone Crusher superiority:

1, large crushing ratio, high production efficiency, can be more high speed and stroke combined, make HP crusher rated power and the ability to greatly improve, improve the crushing ratio and production efficiency.

2, less consumption, low running cost: the result is reasonable, advanced crushing principle and technical specification, reliable operation, low running cost; crusher all parts are hard to wear, repair costs will be reduced to a minimum, average service life can be increased by more than 30%. Used in large-scale stone material factory, solves the counterattack break average crushing ratio, large energy consumption of small, hammer, back plate, lining wear.

3, laminating crushing, refined grain shape excellent: through the use of intergranular lamination principle design special crushing cavity and its matching speed, to replace the traditional single particle crushing principle, to achieve selective crushing, significantly improve the product of fine aggregate ratio and the cube content, greatly reducing the pin sheet material.

4, hydraulic and hydraulic cleaning chamber, a high degree of automation, reduce downtime: hydraulic regulating discharge opening and overload protection makes the crusher operation has been greatly improved, so that the repair is more simple, more convenient operation, shutdown time is shorter; HP series cone crusher hydraulic cylinder double over the release of iron to iron through the crushing chamber, the machine in happened iron and instantaneous stuffy car condition, hydraulic jack, automatic discharge, greatly reduces the original spring cone crusher downtime for artificial nesting problems, and many other manufacturers of crusher is the iron die down.

5, the rare lubrication, reliable advanced, improve service life: unique dilute oil lubrication system design, fully embodies the greatly improves the service life of the equipment. High performance non-contact type labyrinth seal no abrasion, improves the reliability of blocking dust, and fundamentally eliminates the original spring cone crusher oil-water mixed fault. In

6, a variety of crushing cavity, application flexibility, strong adaptability: HP cone crusher by changing the fixed cone lining board, moving cone lining board, crushing cavity from the standard super thick cavity to the short head fine cavity of arbitrary transformation, adapted to the wide range of size requirements.

7, ease of maintenance and repair, convenient operation and use: HP cone crusher all parts are available from the top or side of disassembly and maintenance, the moving cone and cone assembly and disassembly are convenient, there is no need to disassemble the machine frame, a fastening bolt, so the HP cone crusher daily replacement of lining plate more convenient. Using hydraulic motor, the crusher, production efficiency.

8, it provides higher production capacity, the best products of grain shape, and easy automatic control, with maximum reliability and flexibility, the real for the user to create more value.

CCH series Hydraulic Cone Crusher when using some cautions:

CCH series Hydraulic Cone Crusher production capacity table can be used as a normal play CCH series crusher production capacity of reference. Crusher is in the production line of a component. So its performance by feeder, belt machine, vibrating screen, motor, transmission part and a bunker is correct selection and operation effect. So the use of P series Hydraulic Cone Crusher attention the following factors can improve the Hydraulic Cone Crusher production capacity and performance:

[1] .sieving capacity;

[2] .lack of feeding control;

[3] .feed containing viscous material;

[4] .the broken material correct selection of crushing cavity;

[5] .crusher discharge zone is not smooth;The 44material is too hard or too tough.

[6] .feeding in less than the discharge port of fine crusher production capacity of more than10%;

[7] .broken along the cavity surrounding the feed distribution;The recommended the use of power;

[8] .feed size ratio appropriate;The33434 in a crushing chamber within the range of 360 degrees to the material distribution;

[9] .proper selection of prescreening and closed screening sieve sizes; and reduce the Hydraulic Cone Crusher production capacity factors:

[10] .automatic control device; the crusher discharge District smooth;The 6conveyor belt specifications and crusher maximum processing capacity to adapt;

Hydraulic Cone Crusher technical parameters :


Model Type of Cavity Max Feeding Size(mm) Discharge Range(mm) Motor Power(kw) Capacity(t/h)--open circuit, closed discharge(mm)
9 13 16 19 22 26 32 38 51 63 76 89
 CCH639 C 160 22-33 75-90         120 130 150
M 130 13-26   65 85 100 120 130
F 50 9-19 40 60 80 90
CCH651 EC 260 26-51 185-200           250 290 340 395
C 220 19-51       182 209 236 279 334 365
M 150 16-38     125 140 165 220 275 330
F 80 9-22 70 90 115 130 150
CCH667 EC 315 38-24 250-280               555 649 766
C 230 26-64           366 430 468 629 657
M 205 22-52         266 299 348 393 451
F 180 16-38     188 212 234 267 305 337
CCH684 EC 450 38-89 400               890 1179 1380 1475 1566
C 350 32-76             800 850 1100 1288 1398
M 320 26-63           612  735 815 990 1137
F 268 19-52     376 412 500 620 725 867

Technical Data of the Short head hydraulic cone crusher :

Model Type of Cavity Max Feeding Size(mm) Discharge Range(mm) Motor Power(kw) Capacity(t/h)--open circuit, closed discharge(mm)
3 5 6 9 13 16 19 22 26 32 38
 CCH639D C 70 6-19 75-90     59 68 96 110 130
M 51 5-16   45 59 68 96 110
F 35 3-13 30 45 50 65 90
CCH651D C 89 9-22 185-200       100 120 175 210
M 70 6-16     105 130 160
F 54 5-16   80 90 110 135 160
CCH667D EC 133 13-26 250-280         280 310 340 370 390
C 133 10-26       210 280 31 340 370 390
M 89 6-19     130 168 215 260 290
F 70 6-13     130 168 215
CCH684D EC 203 16-26 400           510 600 630 680
C 178 13-26         455 488 552 600 620
M 133 10-19       355 420 460 530
F 105 6-16   220 310 375 428
Note:

1.The capacity is total tons per hour passing through crusher at open circuit when crushing medium and below hardness material and bulk density with 1.6x103kg/m3. Capacities are relative to physical character and type of feeding, feeding size and composition and so on.
2.CCH651(D)and CCH684(D)standard configuration includes discharging opening of hydraulic locking and hydraulic motor adjustment, and you can choose CCh639(D),cch651(D)as matching products.
